Item Number : | P85 |
Size : | 85 Inch |
Multi-touch : | 20 Points |
Resolution: | 3840x2160 UHD |
Brand: | Tenpoit |

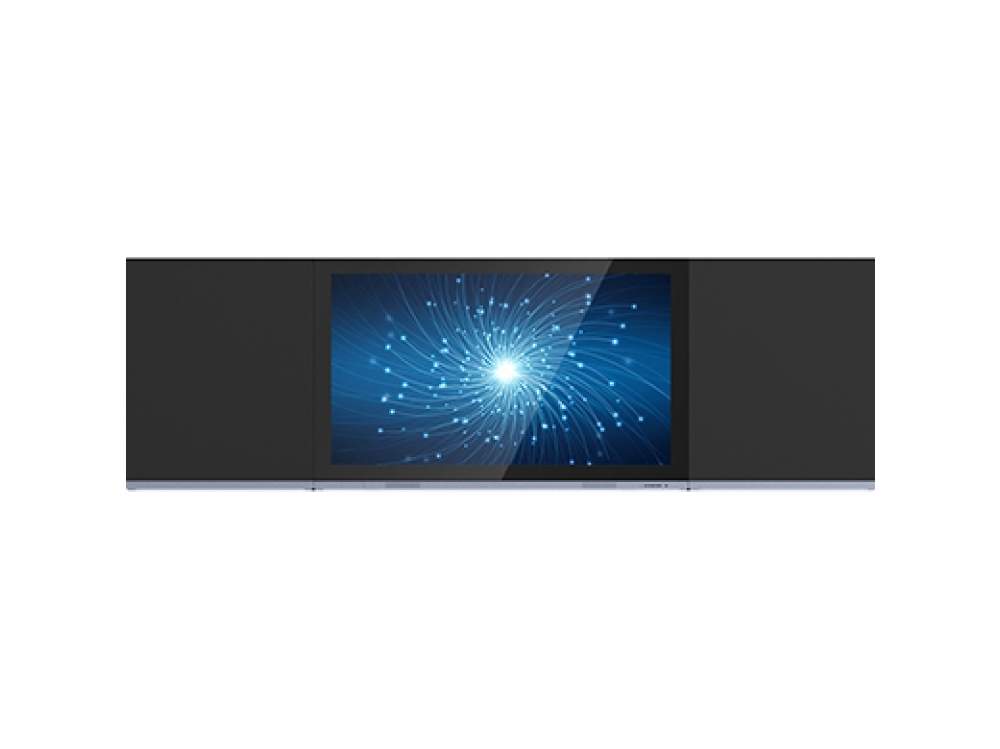

Buy Tenpoit P85 Nano Capacitive Touch Screem Smart Interactive e-Blackboard for Smart Classroom
As
one of a professional manufacturer and brands of smart digital equipments for
education, Tenpoit has been developing, producing and supplying a wide variety
of range of recordable smart interactive e-blackboard, e-whiteboard,
interactive flat panel display ,
interactive white boards and smart boards for years to fit smart
classroom needs from kindergarten schools to primary grade one to grade 6 , and
middle schools or junior high schools , senior high schools , secondary schools
to college and /or universities. The smart interactive boards bring education
revolutionary change and technical innovation and make smart classroom become
highly smart, interactive and much more engaging. Both teachers and students
can be deeply engaged in class, teachers can easily grasp students’ attention
and keep their eyes on the lesion for as much as possible. Blackboard writing
and teaching process can be saved and shared to students and their parents
which enable students review what they have just learned within hours , no more
than 24 hours after the end of their lessons, at any time anywhere.
75″- 86″ Nano Capacitive Touch Screem Smart Interactive e-Blackboard
Nano-silver wires capacitive touch, smoother writing experience
This is Tenpoit state of the art nano-silver wires capacitive touch technology that brings users better and smoother hand writing experience far beyond infrared touch.
Excellent anti-interference, accurate and smooth writing
It features highly excellent anti-interference performance that can raise sensitivity and fluency
and give users highly precise touch and more accurate and smooth writing.
Better light transmission
It has the technological advantage of better light transmission of display area without visual interference from metallic grids.
4K UHD ultra-clear and sharp resolution, better eye care
It also features super large 4K UHD clear and sharp resolution and Mohs 7H hardness level anti-glare tempered glass that enable the display present extremely clear contents without missing any details in a better eye care manner even if under complicated ambient lighting conditions. What’s more, it can support a wide range of video and pictures formats and fit multimedia teaching needs perfectly.
Full optical bonding technology
Using full optical bonding technology, the protective tempered glass of the nano-capacitive touch panel is closely and completely stuck and adhered to the surface of the LED/LCD display/ module without any gap, which is able to eliminate air , dust and fog that reduce visual errors and damage caused by light reflection.
Harmful blue light is selectively filtered out to protect human eye.
Harmful blue light is selectively filtered out to make spectral distribution of wavelength of blue light below 440nm decreased to zero and more than 90% of short wavelength blue light that hurt people eyes are eliminated while reserving picture quality and hue unchanged by adjusting LED chips to purify harmful blue light effectively.
Up to 20 points multiple capacitive touch
With up to 20 points multiple capacitive touch, it has better user friendly interface and support multi-touch and allow multiple users write and draw on the interactive screens simultaneously.
Key advantages and features
Display | Model | P75 | P86 |
LED Panel size | 75" LED backlight | 86" LED backlight | |
Active area | 1650.24x928.26 | 1913.1×1084 | |
Colors | 16.7M | 16.7M | |
Resolution | Ultra FHD 3840x2160 (16:9) | Ultra FHD 3840x2160 (16:9) | |
Brightness | 350cd/㎡ | 350cd/㎡ | |
Contract Ratio | 5000:1 | 1200:1 | |
Viewing angle | 178°/178° | 178°/178° | |
Response time | 6 ms | 10 ms | |
Audio power | 2*15 watts stereo / 8Ω | 2*15 watts stereo / 8Ω | |
Left & Right Boards | Blackboard Type | Blackboard, whiteboard as options | |
Materials | Honeycomb Aluminum Plate | ||
Writing Tool | Chalk | ||
Dimension | 933* 61.5*1044mm * 2pcs | 1002* 91.6*1269.13mm * 2pcs | |
Interactive Touch Screen | Touch Technology | Nano Silver Capacitive touch | |
Touch accuracy (typ.) | ±2mm | ||
Touch resolution | 32768X32768 | ||
Touch response time | ≤ 15ms | ||
Touch method | finger touch and/or Capacitive Stylus/pen touch | ||
Communication method | USB,UART | ||
Multi-touch | 20 points in Android O/S and 40 points in Windows O/S | ||
Touch Activation Force | No minimum touch activation force required | ||
Glass Surface Hardness | 7H | ||
Thickness of Tempered glasss | 3mm | ||
Touch times | Umlimited | ||
Simultaneity | Touch screens can work and present what you write on the left and /or right boards simultaneously | ||
Touch lifetime | ≥7 years | ||
PC O/S | Android O/S | ||
Android O/S Version | Android 8.0 | ||
CPU | Dual-core A73*2 | ||
GPU | dual-core A53*2 1.5GHz ,G51MP | ||
Storage | RAM 3GB ; ROM 32G; | ||
Network | LAN/ WiFi(2.4G+5G ) | ||
Windows O/S | |||
CPU | I5 (i3/ i7 optional) | ||
Storage | Memory: 3G ; HDD: 128G SSD (256G/512G/1TB optional) | ||
WIFI | Dual Wifi, 2.4G & 5G | ||
Camera | 8 MP | ||
Microphone | Array Microphone *4 | ||
OS | Pre-install Windows 10 Pro | ||
I/O Connectors |
Front :USB3.0*4,HDMI*1,Touch USB*1, Type-c *1; Inputs on the Rear: HDMI*2, VGA*1, YPbPr*1, AV In *1, VGA Audio In*1, RJ45 IN *1,RS232 In*1,UART *1 ; Outputs on the rear : Earphone*1, SPDIF*1, USB2.0*2, TOUCH USB*1 Key buttons in front bezel : 8 buttons in front bezel: Power, Source,Menu,Volume+/-,Home, PC,Eco |
||
Other Details | Accessories | Power cable*1 pcs; Touch Pen*1 pcs; Remote Control*1 pcs; User manual*1 pcs ; grounding wire*1 pcs; Wall mount brackets*1 set | |
Power supply | AC100~240V,50/60Hz | ||
Power consumption | ≤300W | ≤450W | |
Standby power consumption | 0.5W | 0.5W | |
Operation temperature | 0℃~50℃ | ||
Storage temperature | Minus 20℃~+60℃ | ||
Operation & Storage humidity | 20%~80% | ||
Installation methods | Wall mounted | ||
Overall size | 146 inch | 185 inch | |
Product dimension(mm) | TBD |
4004(L)*
91.6(D)*1269.1(H) mm ( wall mount brackets included); |
|
TBD |
Display:
2000(L)* 91.6(D)*1269.1(H)mm; Left & Right Boards: 1002(L)* 91.6(D)*1269.1(H)mm *2pcs |
||
Box dimension(mm) | TBD |
Display:
2140*1417*280mm *1 CTN; Left & Right Boards: TBD |
|
Weight(KG) | TBD | N.W.:105/G.W.:142 |
