| Item Number : | P6500 |
| Size : | 65 Inch |
| Multi-touch : | 20 Points |
| Resolution: | 3840x2160 UHD |
| Brand: | Tenpoit |

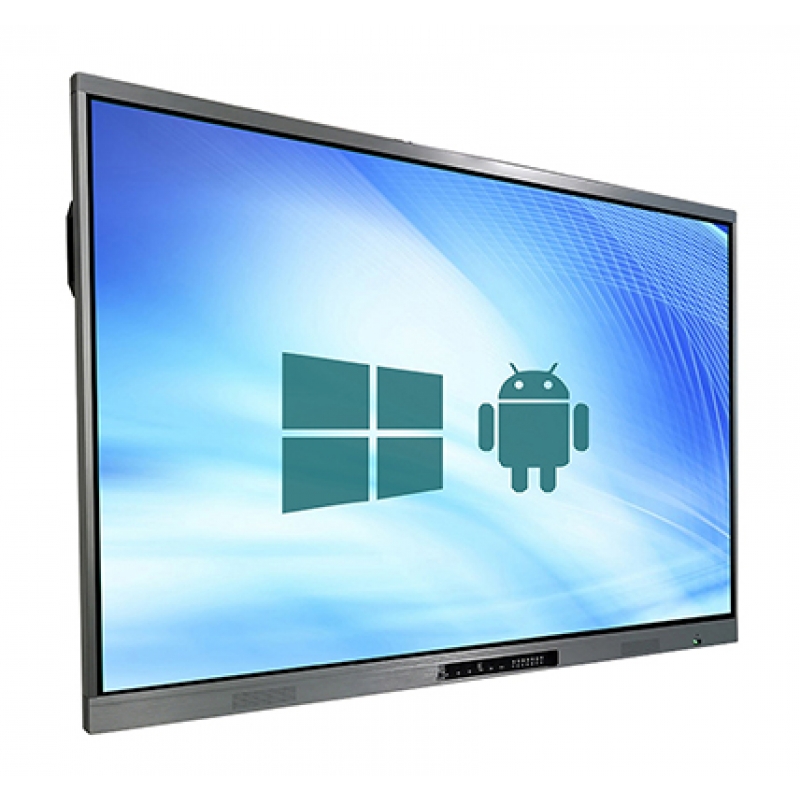

Tenpoit P6500 smart Interactive Flat Panel for Education
Tenpoit smart Interactive flat panel displays are specially designed for smart classroom solutions. It is dual O/S system design that support both Android 8.0 and Windows 10.
SMART Classroom interactive learning software is embedded into the smart Interactive flat touch screen panel displays that can bring teachers and students extremely friendly users interface to allow both teachers and students engage in class. The interactive flat panel features Anti-glare 4K UHD and 20 points multi-touch that support multiple users writing simultaneously. Blackboard writing and teaching process can be saved and shared to students.
The sizes of our smart interactive flat panels include 55″4K, 65″4K, 75″4K, 86″4K and 98″4K . 93″4K and 110″4K super giant smart interactive video wall for teaching, training and conference are also available.
● 55"- 98" Interactive displays available,
● Elegant slim bezel design, aluminum frames and metallic housing without harmful electromagnetic radiation,
● 6Points/10points/20Points/32points multi-touch optional,
● Highly sensitive and fast response, no touch delay,
● Smooth writing capabilities for multiple users engaged,
● No dust of chalk, protecting teacher health,
● Anti-glare eye care design, 4K resolution, ultra wide viewing angle ,
● It combines functions and features of traditional blackboards, touch screens, smart boards, speakers, television, computer and recorder,
● Multiple users can be engaged in writing and drawing simultaneously,
● All blackboard writing and teaching process can be saved and shared to students,
● It can support gesture zoom in and out freely,
● Simple installation and easy operation,
● Suitable for teaching, training , meeting and many other applications.
| Display | Model | P6500 | P7500 | P8600 |
| LED Panel size | 65" | 75" | 86" | |
| Active area | 1428.048x814.6 | 1650.24x928.26 | 1895.04×1065.96 | |
| Colors | 16.7M | 16.7M | 16.7M | |
| Resolution | Ultra FHD 3840x2160 (16:9) | Ultra FHD 3840x2160 (16:9) | Ultra FHD 3840x2160 (16:9) | |
| Brightness | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | |
| Contract Ratio | 4000:1 | 5000:1 | 4000:1 | |
| Viewing angle | 178°/178° | 178°/178° | 178°/178° | |
| Response time | 8 ms | 6 ms | 8 ms | |
| Audio power | 2*15 watts stereo / 8Ω | 2*15 watts stereo / 8Ω | 2*15 watts stereo / 8Ω | |
| Interactivity | Touch Screen Type | IR touch; HIB Free drive | ||
| Touch accuracy (typ.) | ±3mm | |||
| Touch resolution | 32768X32768 | |||
| Touch response time | ≤ 8ms | |||
| Touch method | finger and stylus pen,or opaque objects | |||
| Communication method | USB | |||
| Multi-touch | 20 points | |||
| Touch Activation Force | No minimum touch activation force required | |||
| Surface Hardness | 7H | |||
| Touch times | Umlimited | |||
| Touch lifetime | ≥7 years | |||
| PC O/S | Android O/S | |||
| Android O/S Version | Android 6.0 | |||
| CPU | Quad Core, A73*2 and A53*2, 1.5GHz | |||
| GPU | Quad-core MaliG51 | |||
| Storage | RAM 2GB DDR3 ; ROM 32G; | |||
| Network | LAN/ WiFi | |||
| Windows O/S | ||||
| CPU | I5 (i3/ i7 optional) | |||
| Storage | Memory: 4G (8G optional) ; HDD: 128G SSD (256G/512G/1TB optional) | |||
| Network | LAN/ WiFi | |||
| OS | Pre-install Windows 10 Pro | |||
| I/O Connectors |
Inputs : AV*1, YPbPR*1, VGA*1, AUDIO*1 ,HDMI*4,
LAN(RJ45)*1 , USB2.0*2,
USB3.0*3,RS232*1,UART*1,MIC In *1, SD Slot *1, Touch USB*2 Outputs: SPDIF*1, Earphone*1 ,AV out *1, VGA out *1 Key buttons in front bezel : 7 buttons in front bottom frame: Power, Source,Volume+/-,Home, PC, Eco |
|||
| Other Details | Accessories | Power cord*1;Remote Control*1; Touch Pen*1; User manual*1 ; Wall mount*1 set | ||
| Power supply | AC100~240V,50/60Hz | |||
| Power consumption | ≤250W | ≤300W | ≤400W | |
| Standby power consumption | 0.5W | 0.5W | 0.5W | |
| Operation temperature | 0℃~50℃ | |||
| Storage temperature | Minus 20℃~+60℃ | |||
| Operation & Storage humidity | 20%~80% | |||
| Installation methods | Wall mounted | |||
| VESA mount point | 500*400mm | 600*400mm | 750*400mm | |
| Product dimension(mm) | 1490*906*93mm | 1710*1030*93mm | 1957*1170*93mm | |
| Box dimension(mm) | 1620*1054*200mm | 1845*1190*200mm | 2110*1375*200mm | |
| Weight(KG) | N.W.:41/G.W.:52Kg | N.W.:56/G.W.:67Kg | N.W.:70/G.W.:82 | |
