| Model Number : | S4066/S7066 |
| Image Sensor : | 1/4 PC7070D CMOS/1/3 PC2099 CMOS |
| Effective Pixels: | 640(H) x 480(V) /968(H) x 488(V) |
| Resolution: | 420TVL/700 TVL |
| Brand: | Fultape |
Description:

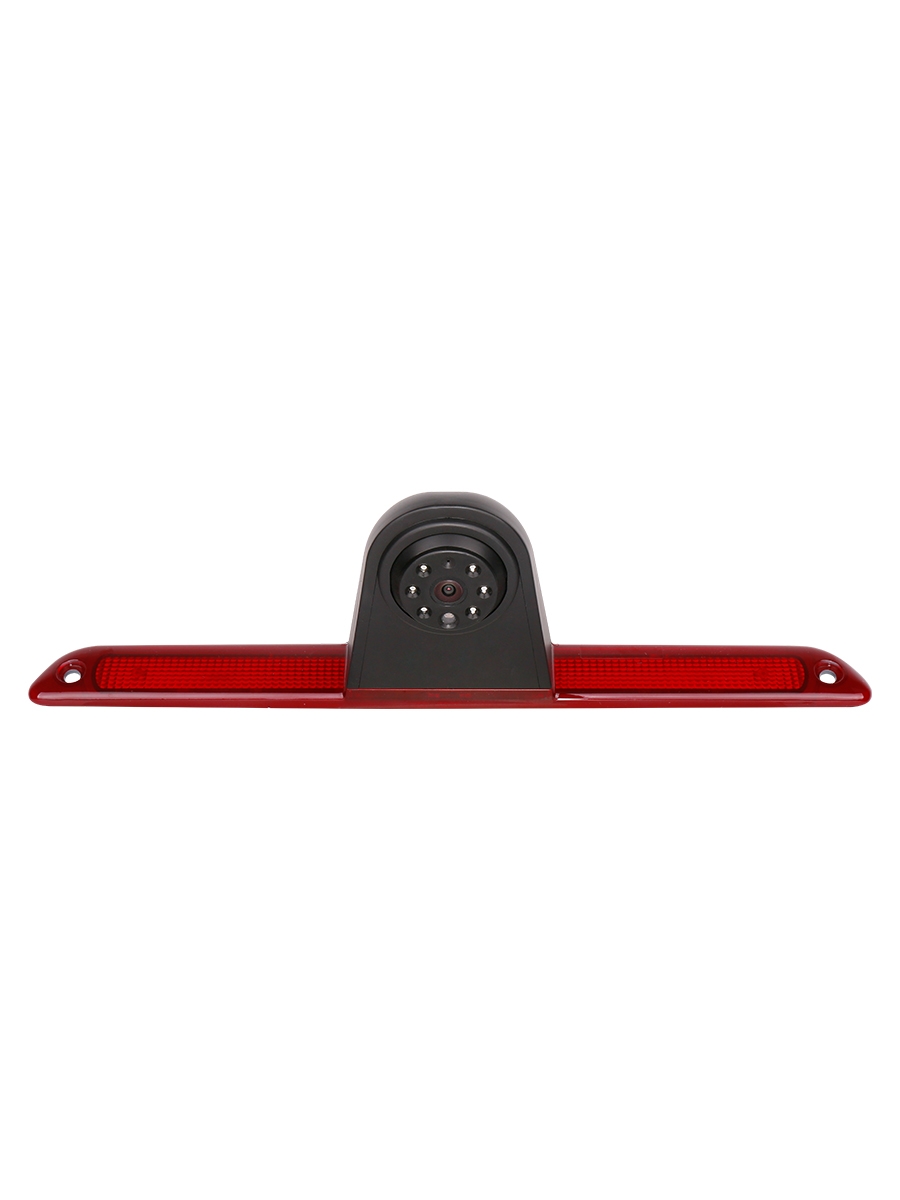

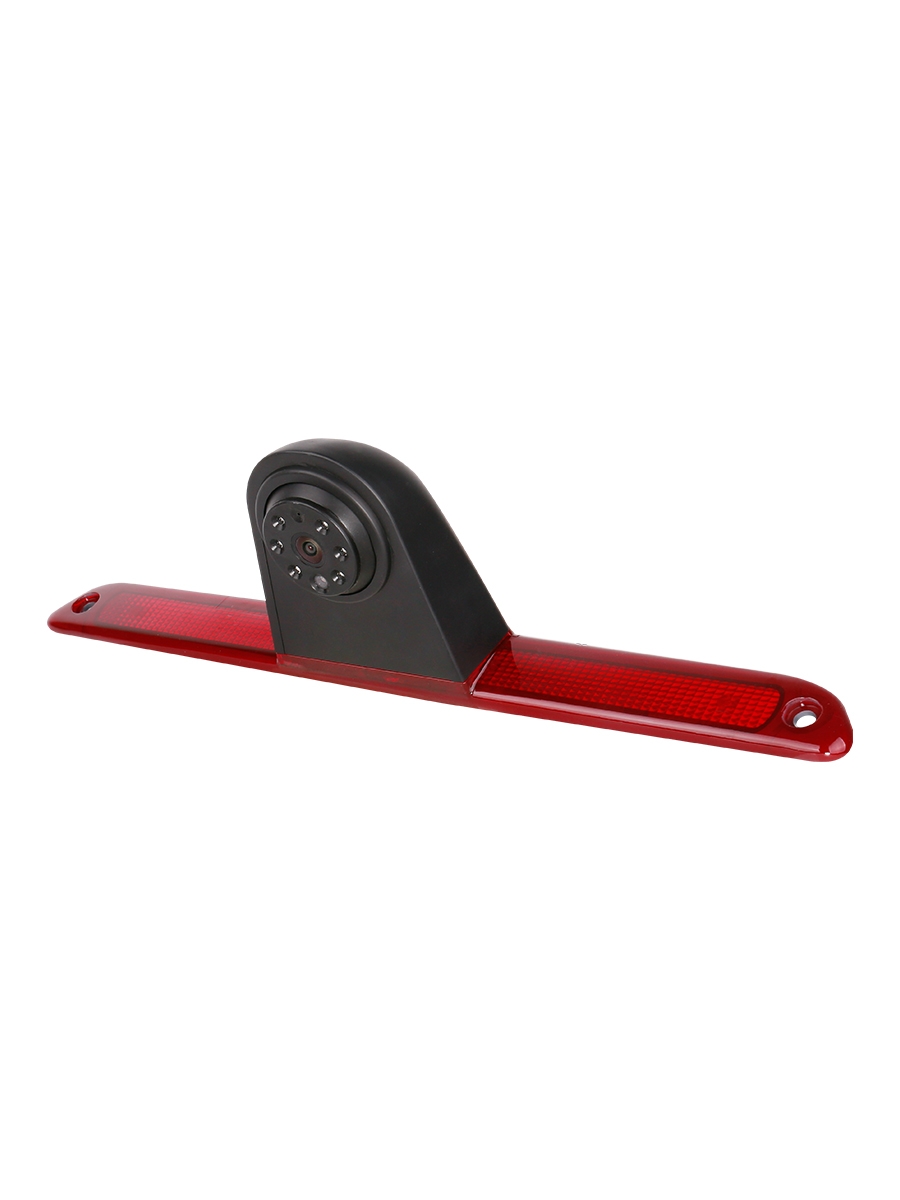

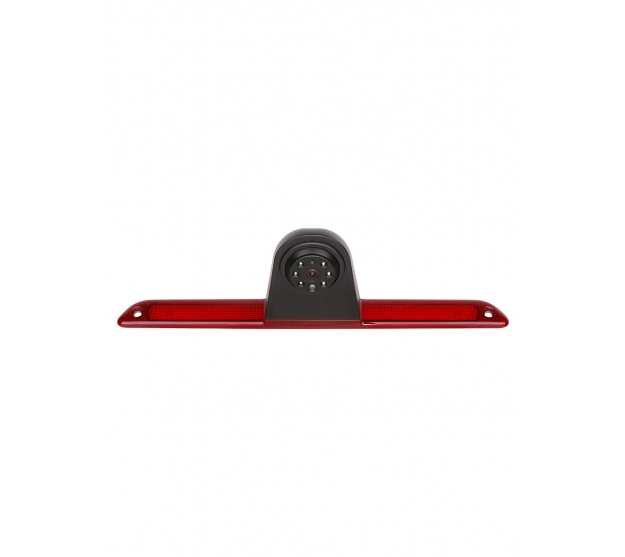

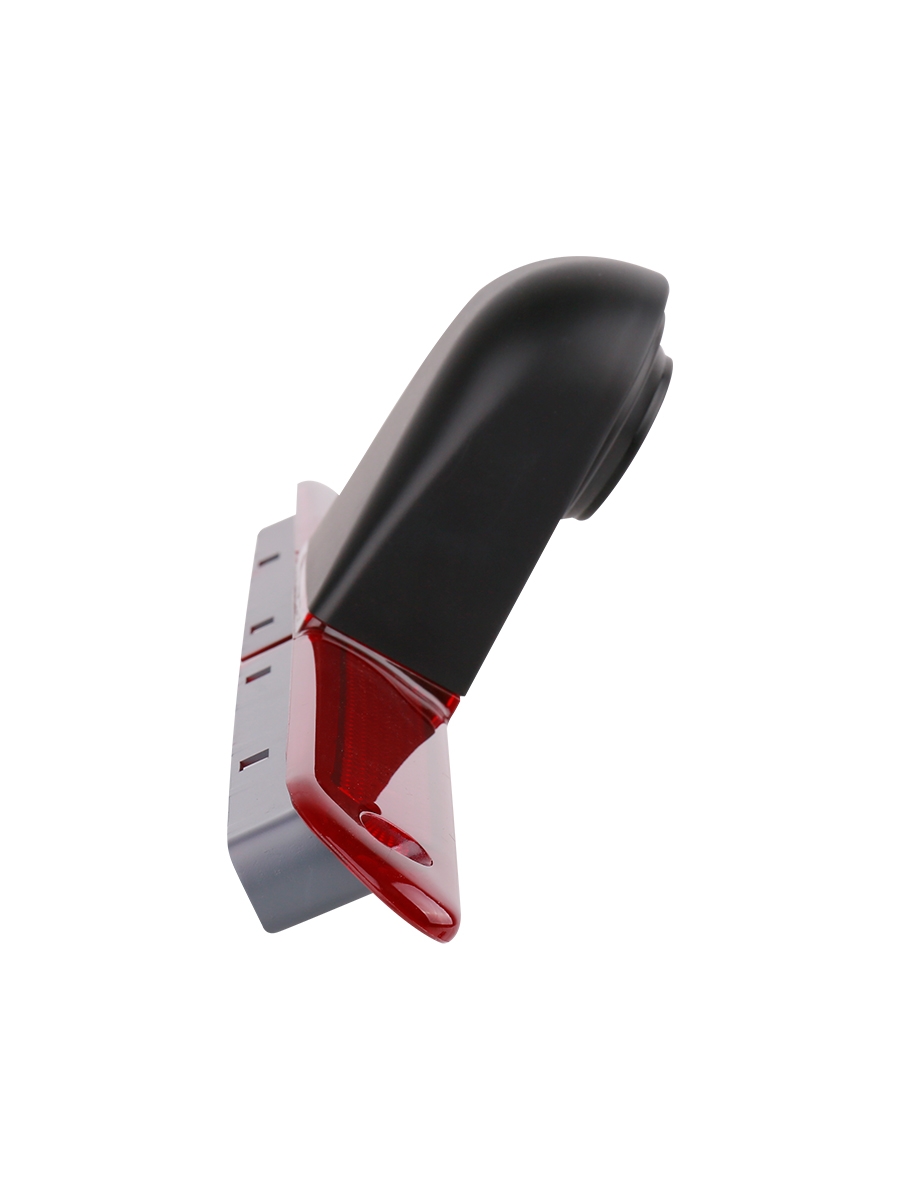

Waterproof Night Vision HD Color Rear View Third brake light reversing cameras FIAT Ducato style for late 2006-2015 3 gen, Maxi, Peugeot Boxer, Citroen Jumper and more
Key Features:
○ High performance SONY 2 Mega-pixel image sensor
○ Day night vision
○ Supporting ICR switching
○ IP68 Rated Waterproof
○ High elusive, good hidden, better integration/combination with car
Specifications:
| Model | S4066/S7066 |
| Image Device | 1/4 PC7070D CMOS/1/3 PC2099 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 640(H) x 480(V) /968(H) x 488(V) |
| Sensing Area | 2.8μm(H)*2.8μm(V) |
| Sync. System | Internal |
| Resolution | 420TVL/700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.8mm |
| Lens Angle | 122° |
| Current Drain | 70±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
