| Model Number : | S4063/S7063 |
| Image Sensor : | 1/3 CMOS PC1058K |
| Effective Pixels: | 976(H)×592(V) |
| Resolution: | 420TVL/700 TVL |
| Brand: | Fultape |
Description:

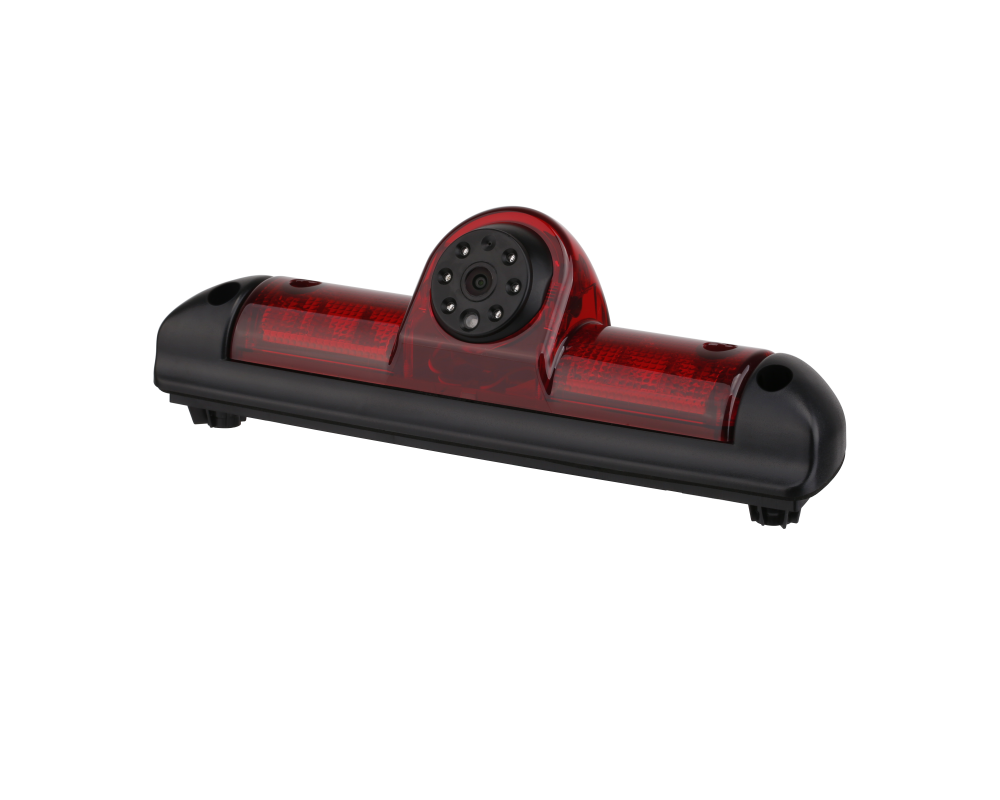

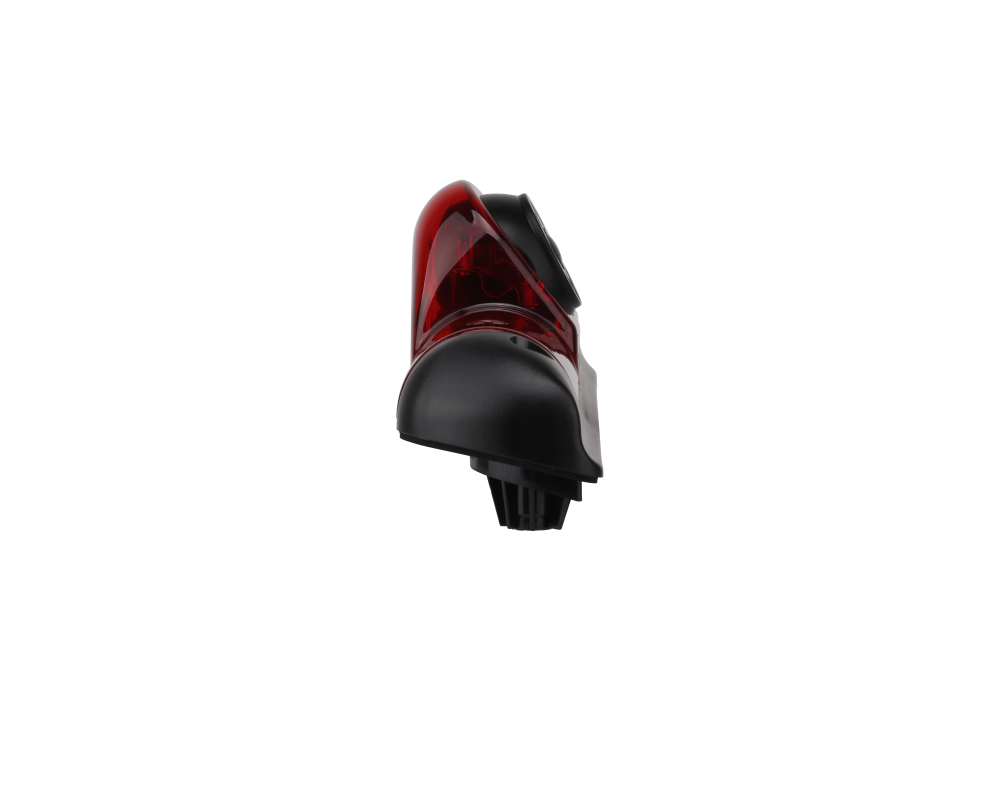

Waterproof Night Vision HD Color Rear View Third brake light reversing cameras FIAT Ducato style for late 2006-2015 3 gen, Maxi, Peugeot Boxer, Citroen Jumper and more
Key Features:
○ High performance SONY 2 Mega-pixel image sensor
○ Day night vision
○ Supporting ICR switching
○ IP68 Rated Waterproof
○ High elusive, good hidden, better integration/combination with car
Specifications:
| Model | S4063/S7063 |
| Image Sensor | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)×592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 420TVL/700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.6mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
