| Model Number : | S4060/S7060 |
| Image Sensor : | 1/3 PC2099 CMOS |
| Effective Pixels: | 968(H) x 488(V) |
| Resolution: | 420 TVL/700 TVL |
| Brand: | Fultape |
Description:

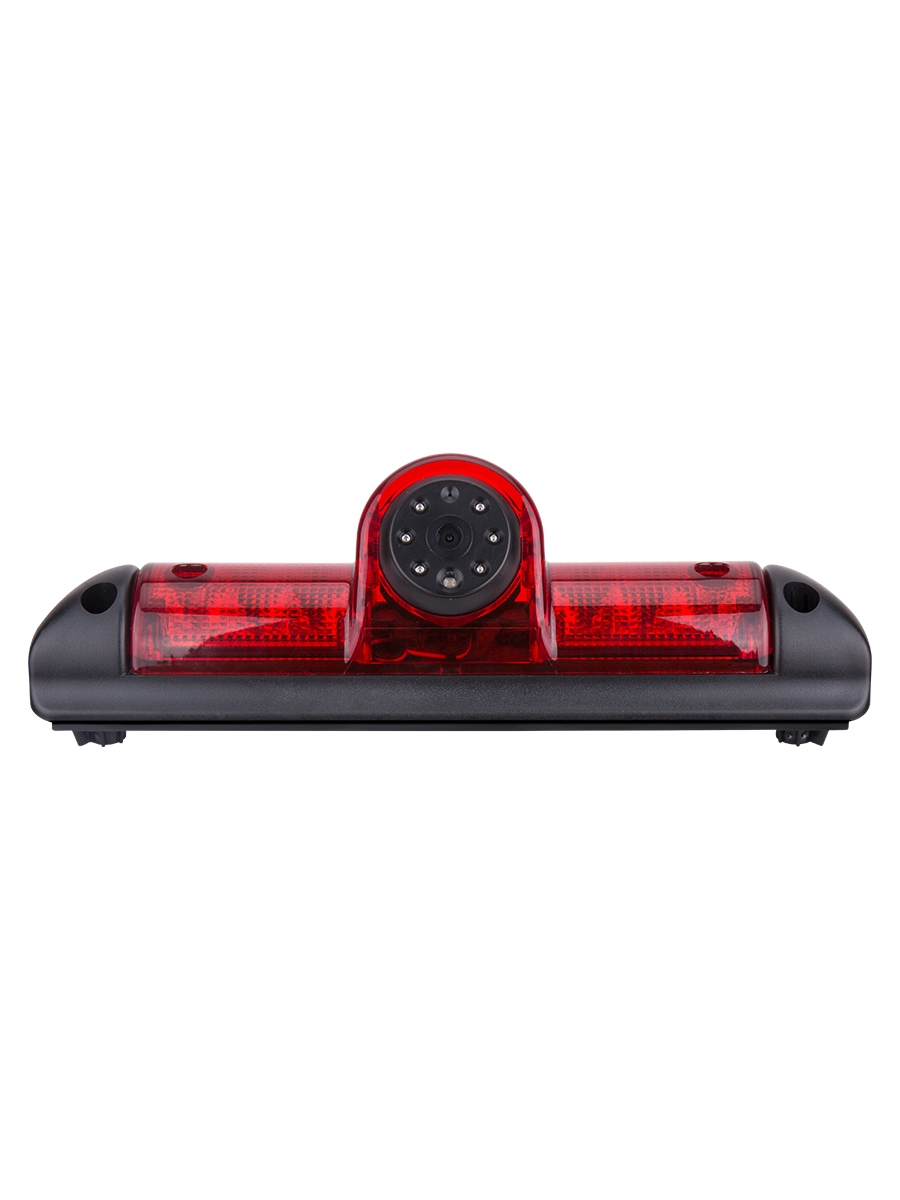

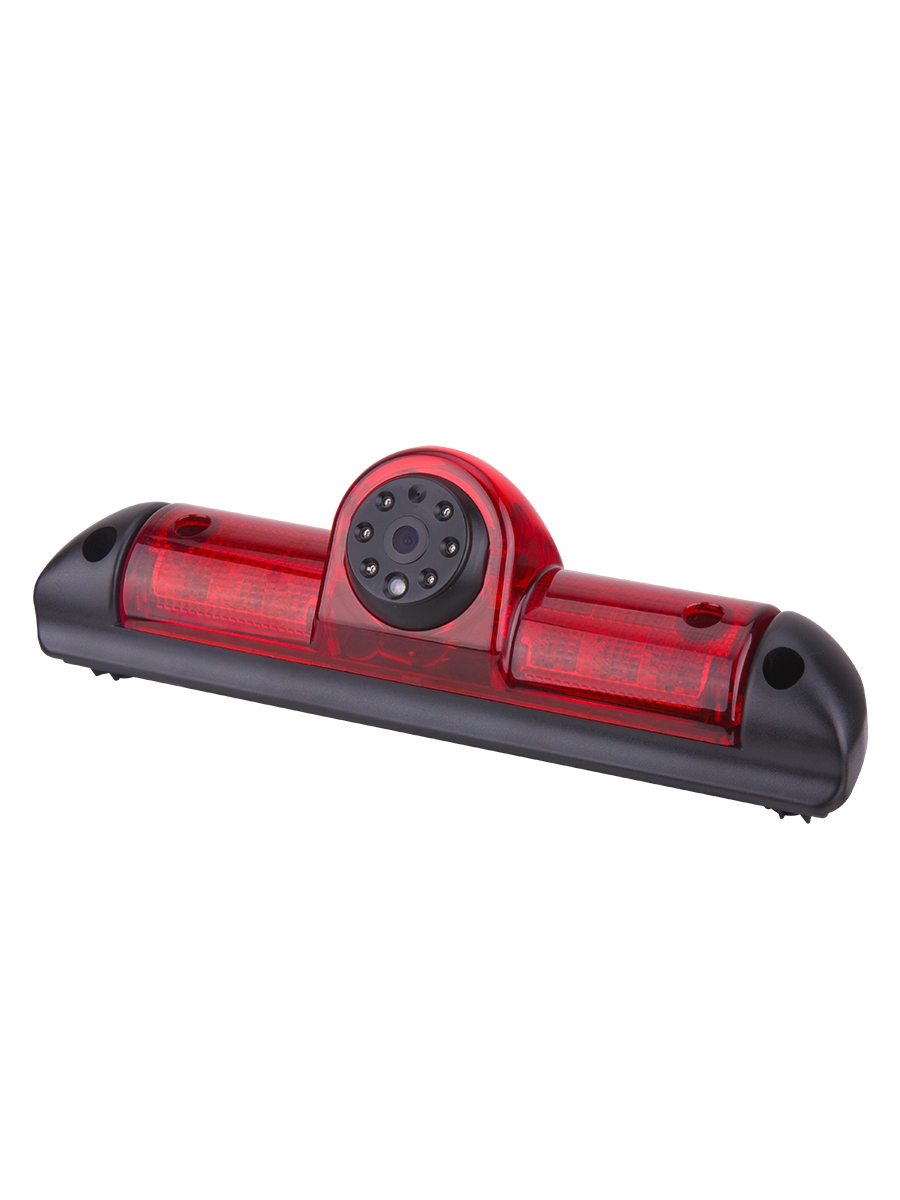

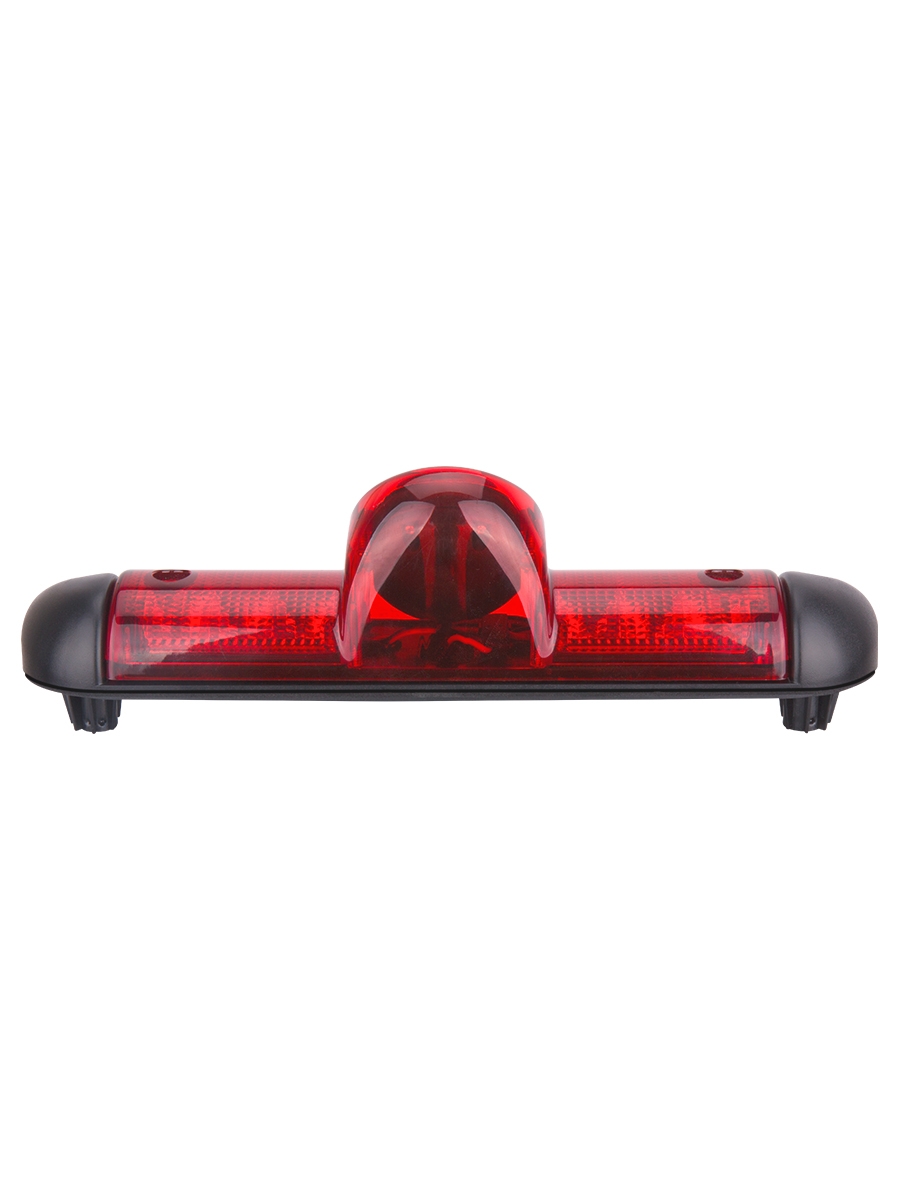

Waterproof Night Vision HD Color Rear View Third brake light reversing cameras FIAT Ducato style for late 2006-2015 3 gen, Maxi, Peugeot Boxer, Citroen Jumper and more
Key Features:
○ High performance SONY 2 Mega-pixel image sensor
○ Day night vision
○ Supporting ICR switching
○ IP68 Rated Waterproof
○ High elusive, good hidden, better integration/combination with car
Specifications:
Model
S4060/S7060
Image Sensor
1/3 CMOS PC2099K
TV
System
NTSC/PAL
Effective
Pixels
968(H)×488(V)
Sensing
Area
4.880mmⅹ 3.670mm
Sync.
System
Internal
Resolution
700TVL
Minimum
Illumination
0.1 Lux (day), 0
Lux (with IR)
Microphone
Optional
IR LED
Qty
6PCS
Video
Output
1.0 Vp-p/75 Ohm
Scanning
System
interlace
AGC
AUTO
Signal
to noise ratio
Better than 48dB
White
balance
AUTO
Gamma
Consumption
0.45
Electronic
Shutter
AUTO
Backlight
Compensation
AUTO
Power
Supply
DC12V
Lens
2.8mm
Lens
Angle
130°
Current
Drain
65±5mA
Operating
Temperature
-20℃-70℃,RH 95%
MAX
Storage
Temperature
-30℃-80℃,RH 95%
MAX
