| Item Number : | F-I-P3 |
| Pixel Pitch: | 3mm |
| Thickness of cabinet | 60-130mm |
| Net weight : | 8.0KG |
| Brand: | FULTAPE |

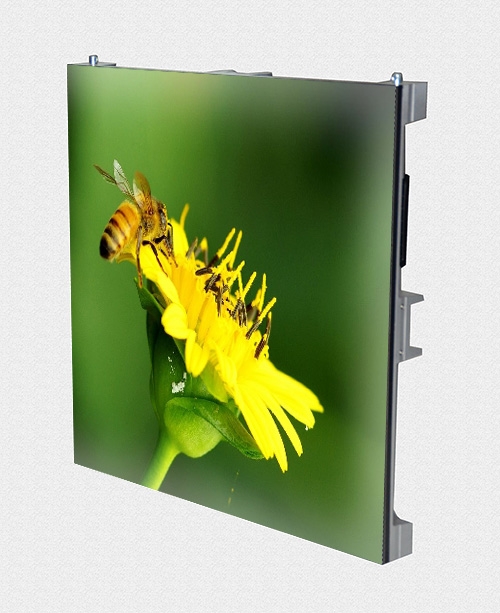

Fixed Indoor P2.5 ,P3, P4,
P5,P6 LED screens / LED displays
FULTAPE electronics has been committed to developing and
manufacturing a full range of high quality fixed indoor outdoor LED screens,
LED displays, LED video wall, pixel pitch ranges from

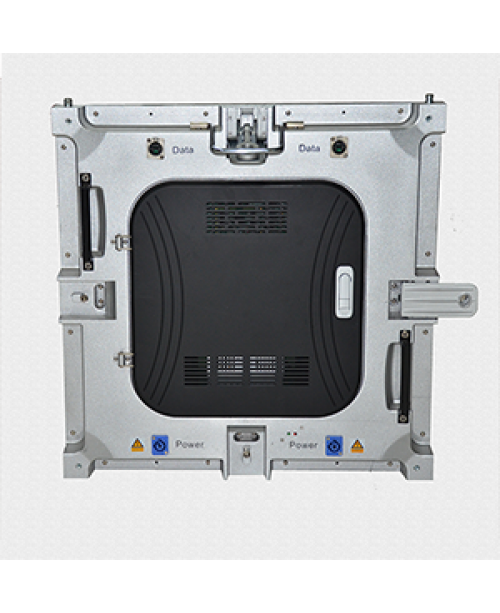

The cabinets
of the P2.5 , P3, P4, P5,P6 fixed indoor outdoor LED screens, LED displays
and LED video walls are manufactured by sophisticated precision CNC machines
and feature special structure designs of precision alignment and quick assembly
to allow users finish installation easily. What’s more, they enjoy the
following advantages.
● SMD 3-IN-1 full color indoor fixed LED display screens
● High brightness, high contrast ratio,
● High refresh rate, high grey scale,
● High color and brightness uniformity
● Fine, Clear and vivid image and video
● Slim and Super light weight, easy to carry and install
● 160(H)/160(V) degrees wide view angle,
● Metallic or die-casting aluminum cabinets
| Technical specifications | ||
| Model | F-I-P3 | F-I-P4 |
| Product name | Indoor full color LED display | |
| LED wave length | R: 620-625nm, G: 520-525nm, B: 465-470nm | |
| Pixel | ||
| Pixel pitch | 3mm | 4mm |
| Pixel configuration | 1R1G1B | 1R1G1B |
| LED Encapsulation | SMD2121(bk) | SMD2121(bk) |
| Module | ||
| Resolution of module | 64*32 | 64*32 |
| Size of module | 192*96 | 256*128 |
| Weight of module | 160.5+10g | 123.5+10g |
| Modules/cabinet(L*H) | 3x6 | 2x4 |
| Cabinet | ||
| Resolution of cabinet | 192*192 | 128*128 |
| Size of cabinet | 576(L) x 576(H) mm | 512(L) x 512(H) mm |
| Cabinet material | Aluminum alloy &steel (plate metal)optional | |
| Thickness of cabinet | Aluminum alloy:6-16cm,steel :8-16cm | |
| Weight of cabinet |
Aluminum
alloy:8kg, steel :15kg |
Aluminum
alloy:6.5kg, steel :12kg |
| Panel | ||
| Pixel density | 111,111 dots/m² | 62,500 dots/m² |
| Brightness | ≥1500CD / m² | ≥1500CD / m² |
| Grey scale | 12 bits/4096 levels | 12 bits/4096 levels |
| Colors | 68.7 Billion | 68.7 Billion |
| View angle | H:150°; V:120° | H:150°; V:120° |
| Optimal view distance | 2-20M | 3-20M |
| Power consumption | 250 Watts/sqm(Average) | 300 Watts/sqm(Average) |
| 750 Watts /m2(Max.) | 700 Watts /m2(Max.) | |
| Refresh rate | ≥1200HZ | ≥1200HZ |
| Control | ||
| Driving mode | 1/16 scan & constant current driving | |
| Signal Interface | Ethernet (network) interface | |
| Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | |
| Control mode | Synchronous display with control PC by DVI | |
| Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m | |
| Operation | ||
| Power supply | 110V/220 V AC , 50HZ/60 Hz | |
| MTBF | ≥5,000 hours | ≥5,000 hours |
| Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
| Out of control rate | <0.0001 | <0.0001 |
| Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ |
| Operation humidity | 10%~95%RH | 10%~95%RH |
| Storage & Application | ||
| Storage temperature | Minus 40℃~85℃ | Minus 40℃~85℃ |
| Storage humidity | 30%~60%RH | 30%~60%RH |
| Application | For indoor use , for rental | |
