| Item Number : | F-I-P1.25U |
| Pixel Pitch: | 1.25mm |
| Thickness of cabinet | 48mm |
| Net weight : | 7.0KG |
| Resolution: | HD |
| Brand: | FULTAPE |

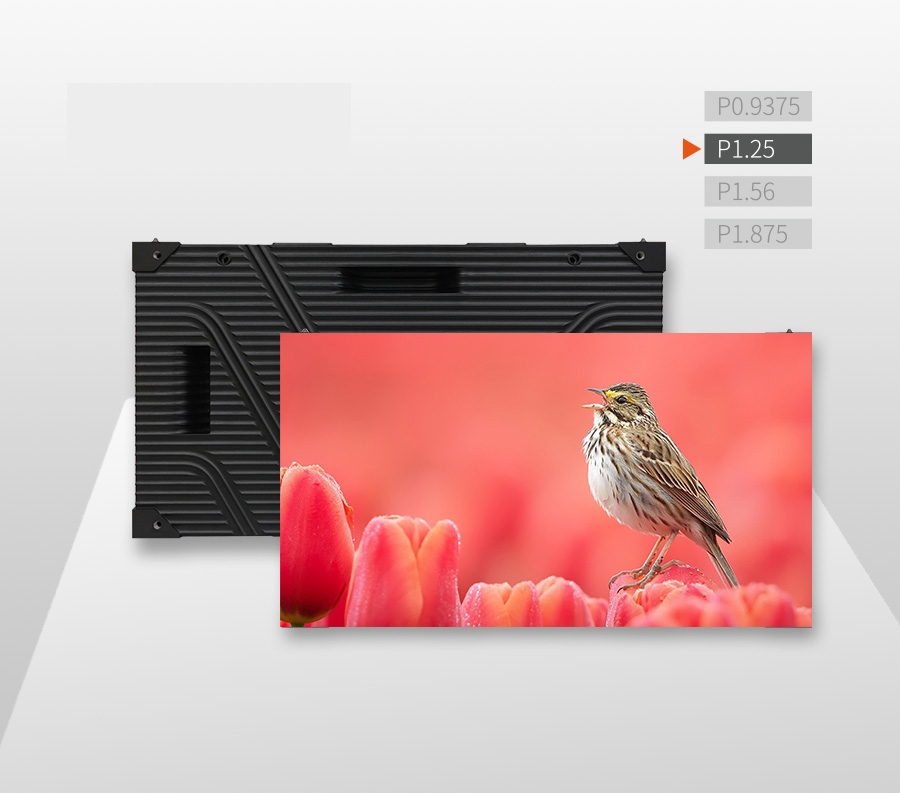

P1.25 Small/Fine pixel pitch HD LED Display screen key features
● Amazing Ultra HD
resolution,
● Highly advanced technology of
low brightness high grey level, 8000:1 high contrast ratio,
3840 Hz high refresh rate
● Wide color gamut, best color
uniformity (consistency) and saturation, no tailing , no overlap
● 99.8% High color and
brightness uniformity
● Finest natural vivid
picture, but eye-care when watching a long time
● 170(H)/170(V) degrees super
wide view angle,
● 3840Hz ultra high refresh rate to eliminate trailing
● Front accessible cabinet, able to install from front
and rear, easy maintenance
● CNC precision manufactured
die-casting aluminum cabinet with excellent flatness
● True zero gap Seamless led video
wall, tolerance gap between cabinets is less than
● Excellent ventilation with
fan-less ultra quiet design
● Ultra-thin cabinet, only
● Extremely light weight cabinet,
only
● CE,FCC and Rosh certified,
10,000 hours lifetime
| Model | F-I-P0.9375U | F-I-P1.25U | F-I-P1.56U | F-I-P1.87U |
| Product name | Ultra-thin extremely light weight fine pixel pitch Indoor full color HD LED display | |||
| LED wave length | R: 619-624nm, G: 522-526nm, B: 469-474nm | |||
| Pixel | ||||
| Pixel pitch | 0.9375mm | 1.25mm | 1.56mm | 1.875mm |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Encapsulation | Mini 4-In-1 | Mini 4-In-1/SMD1010(bk) | Mini 4-In-1/SMD1010(bk) | Mini 4-In-1/SMD1515(bk) |
| Brand of LED | NationalStar | |||
| Module | ||||
| Resolution of module | 160*180 | 120*270 | 96*108 | 80*180 |
| Size of module | 150*168.75 | 150*337.5 | 150*168.75 | 150*337.5 |
| Modules/cabinet(L*H) | 4x2 | 4x1 | 4x2 | 4x1 |
| Cabinet | ||||
| Resolution of cabinet | 640*360 | 480*270 | 384*216 | 320*180 |
| Size of standard cabinet | 600(L) x 337.5(H)x48 (D) | 600(L) x 337.5(H)x48 (D) | 600(L) x 337.5(H)x48 (D) | 600(L) x 337.5(H)x48 (D) |
| Cabinet material | Die casting aluminum alloy | |||
| Maintenance | Front accessible | |||
| Thickness of cabinet | 48mm | |||
| Weight of cabinet |
7.0 kg |
7.0 kg |
7.0 kg |
7.0 kg |
| Panel | ||||
| Pixel density | 1,137,778dots/m² | 640,000dots/m² | 409,600dots/m² | 284,444dots/m² |
| Resolution of LED wall | Ultra-FHD 4K,3840X2160 | Ultra-FHD 4K,3840X2160 | Ultra-FHD 4K,3840X2160 | Ultra-FHD 4K,3840X2160 |
|
Brightness (white balance) |
≥600CD / m² adjustable |
≥600CD / m² adjustable |
≥600CD / m² adjustable |
≥600CD / m² adjustable |
| Color Temperature | 1000K~18500K adjustable | 1000K~18500K adjustable | 1000K~18500K adjustable | 1000K~18500K adjustable |
| Contrast ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 |
| Grey scale | 16 bits/65,536 levels | 16 bits/65,536 levels | 16 bits/65,536 levels | 16 bits/65,536 levels |
| Color Uniformity | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
| View angle | H:170°; V:170° | H:170°; V:170° | H:170°; V:170° | H:170°; V:170° |
| Optimal view distance | 2-20M | 2-20M | 2-20M | 2-20M |
| Average power consumption/sqm | 100Watts | 100Watts | 100Watts | 100Watts |
| Max. power consumption |
420Watts /m2 |
420Watts /m2 |
420Watts /m2 |
420Watts /m2 |
| Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| IP rating |
IP34 Waterproof & dustproof ( front and back ) |
|||
| Control | ||||
|
Driving mode |
Constant current driving | Constant current driving | Constant current driving | Constant current driving |
| 1/30scan | 1/27 scan ; 1/30 scan ;1/45 scan | 1/27 scan ; 1/28 scan | 1/30 scan | |
| Signal Interface | Ethernet (network) interface | |||
| Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | |||
| Control mode | Synchronous display with control PC by DVI | |||
| Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m | |||
| Operation | ||||
| Power supply | 90~264 V AC , 47~63 Hz | |||
| MTBF | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours |
| Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
| Out of control rate | <0.0001 | <0.0001 | <0.0001 | <0.0001 |
| Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ |
| Operation humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Storage & Application | ||||
| Storage temperature | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ |
| Storage humidity | 30%~60%RH | 30%~60%RH | 30%~60%RH | 30%~60%RH |
