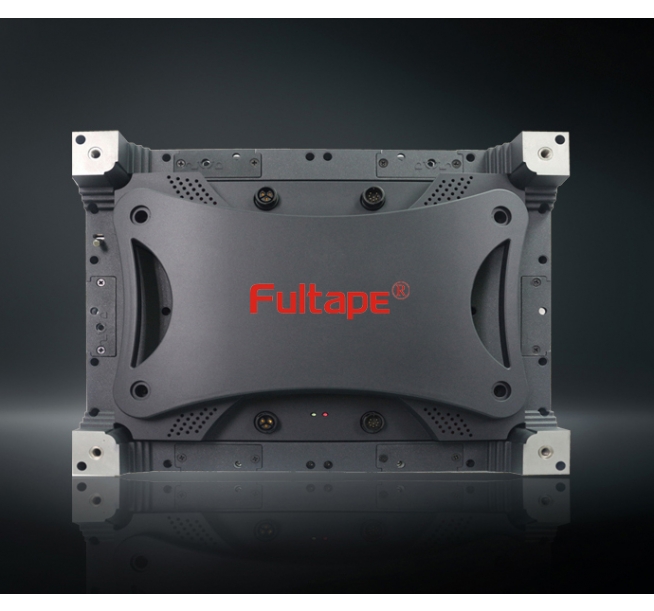

Item Number : | F-I-P2.5 |
Pixel Pitch: | 2.5mm |
Thickness of cabinet | 66mm |
Net weight : | 7.0KG |
Resolution: | HD |
Brand: | FULTAPE |
Buy Fixed led display screens for indoor & Outdoor use | FULTAPE One-Stop Electronics World

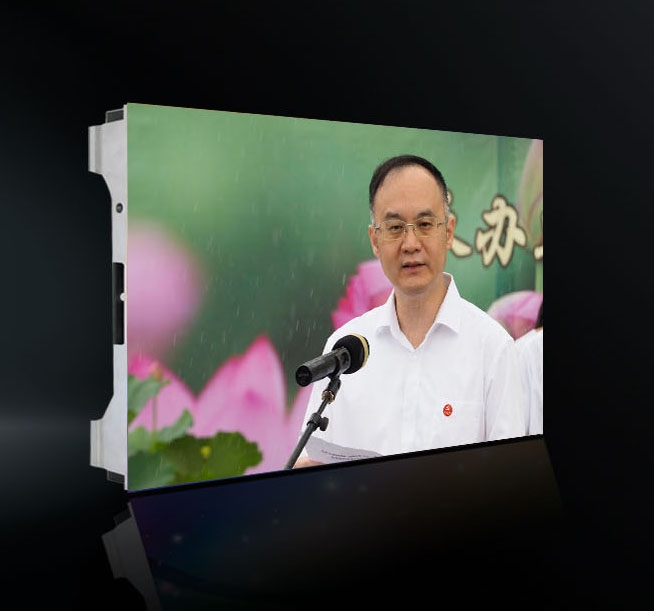

P2.5 led display screens features:
● Amazing Ultra HD resolution,
● 5000:1 ultra high contrast ratio
● High color and brightness uniformity
● Finest vivid picture, but eye-care
● 160(H)/160(V) degrees wide view angle,
● 3840Hz ultra high refresh rate
● Front accessible cabinet, easy maintenance
● ultra thin66mmthickness
Technical specifications | |||
Model | F-I-P2.5-4 | F-I-P2.5-40 | F-I-P2.5-48 |
Product name | Indoor full color LED display | ||
LED wave length | R: 620-625nm, G: 520-525nm, B: 465-470nm | ||
Pixel | |||
Pixel pitch | 2.5mm | 2.5mm | 2.5mm |
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
LED Encapsulation | SMD1010(bk) | SMD2121(bk) | SMD2121(bk) |
Module | |||
Resolution of module | 80*120 | 80*120 | 64*64 |
Size of module | 200*300 | 200*300 | 160*160 |
Modules/cabinet(L*H) | 2x1 | 2x1 | 3x3 |
Cabinet | |||
Resolution of cabinet | 256*192 | 160*120 | 160*120 |
Size of standard cabinet | 400(L) x 300(H) mm | 400(L) x 300(H) mm | 480(L) x480(H) mm |
Cabinet material | Aluminum alloy | ||
Thickness of cabinet | 66mm | ||
Weight of cabinet |
4.6 kg |
4.6 kg |
4.6 kg |
Panel | |||
Pixel density | 409,600dots/m² | 160,000 dots/m² | 160,000 dots/m² |
Resolution of LED wall | Ultra-FHD 4K,3840X2160 | FHD ,1920X1080 | FHD ,1920X1080 |
Brightness (white balance) |
≥800CD / m² | ≥1200CD / m² | ≥1200CD / m² |
Contrast ratio | 5000:1 | 5000:1 | 5000:1 |
Grey scale | 16 bits/16384 levels | 12 bits/4096 levels | 12 bits/4096 levels |
Colors | 68.7 Billion | 68.7 Billion | 68.7 Billion |
View angle | H:160°; V:160° | H:150°; V:120° | H:150°; V:120° |
Optimal view distance | 2-20M | 2-20M | 2-20M |
Average power consumption/sqm | 222 Watts | 250Watts | 250Watts |
Max. power consumption |
791Watts
/m2 |
800Watts
/m2 |
800Watts
/m2 |
Refresh rate | ≥2000HZ | ≥1200HZ | ≥1200HZ |
IP rating |
IP31 Waterproof & dustproof ( front and back ) |
||
Control | |||
Driving mode |
Constant current driving | ||
1/32 scan | 1/30scan | 1/32scan | |
Signal Interface | Ethernet (network) interface | ||
Support input source | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc | ||
Control mode | Synchronous display with control PC by DVI | ||
Control distance | Cat5 Ethernet cable ≤120m ; Optical fiber : 10000m | ||
Operation | |||
Power supply | 110V/220 V AC , 50HZ/60 Hz | ||
MTBF | ≥5,000 hours | ≥5,000 hours | ≥5,000 hours |
Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
Out of control rate | <0.0001 | <0.0001 | <0.0001 |
Operation temperature | Minus 20℃~60℃ | Minus 20℃~60℃ | Minus 20℃~60℃ |
Operation humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH |
Storage & Application | |||
Storage temperature | Minus 40℃~85℃ | Minus 40℃~85℃ | Minus 40℃~85℃ |
Storage humidity | 30%~60%RH | 30%~60%RH | 30%~60%RH |
Application | For indoor use , for rental |
