Model Number : | RC6003S |
Image Sensor : | 1/2.8 |
Effective Pixels: | 2.0MP |
Resolution: | 1920x720/1920X1080 at 25/30fps |
Brand: | Fultape |
Description:

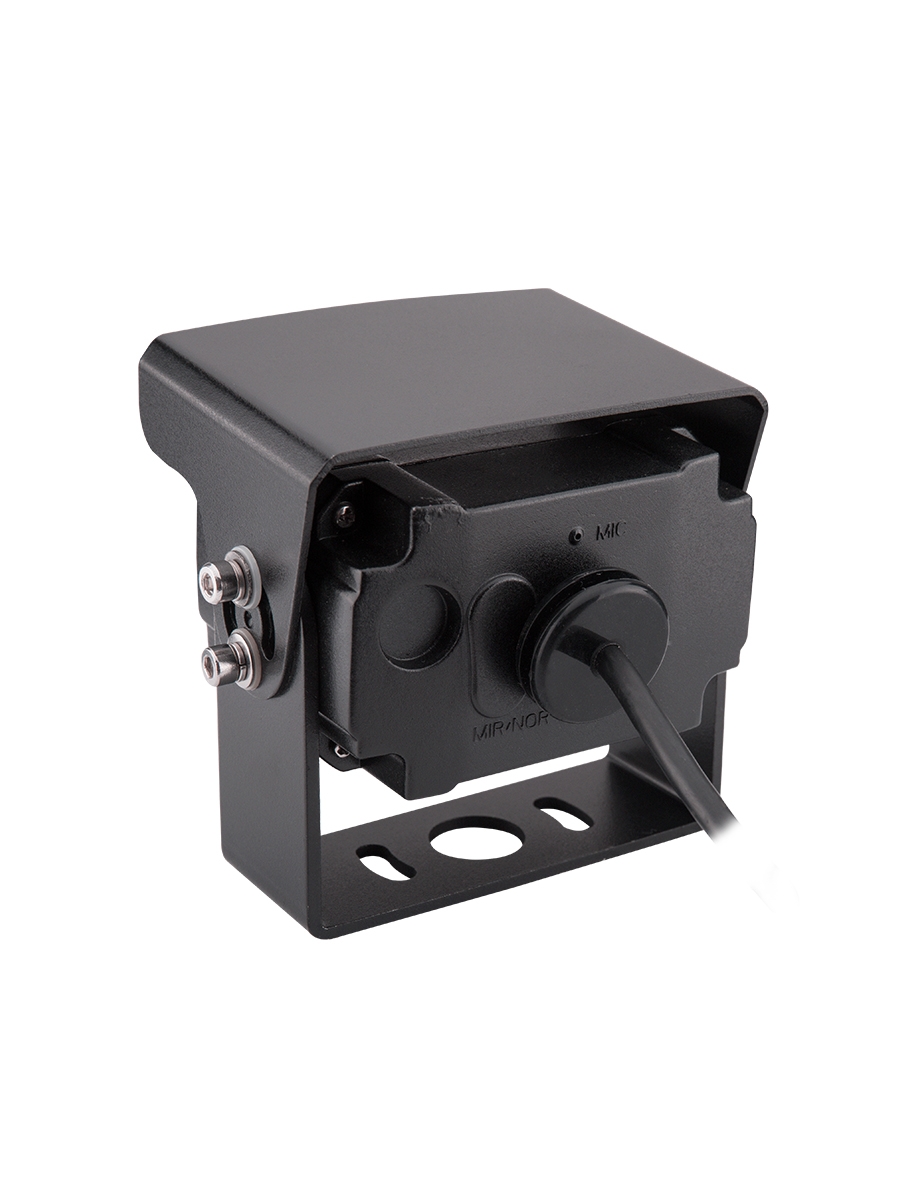

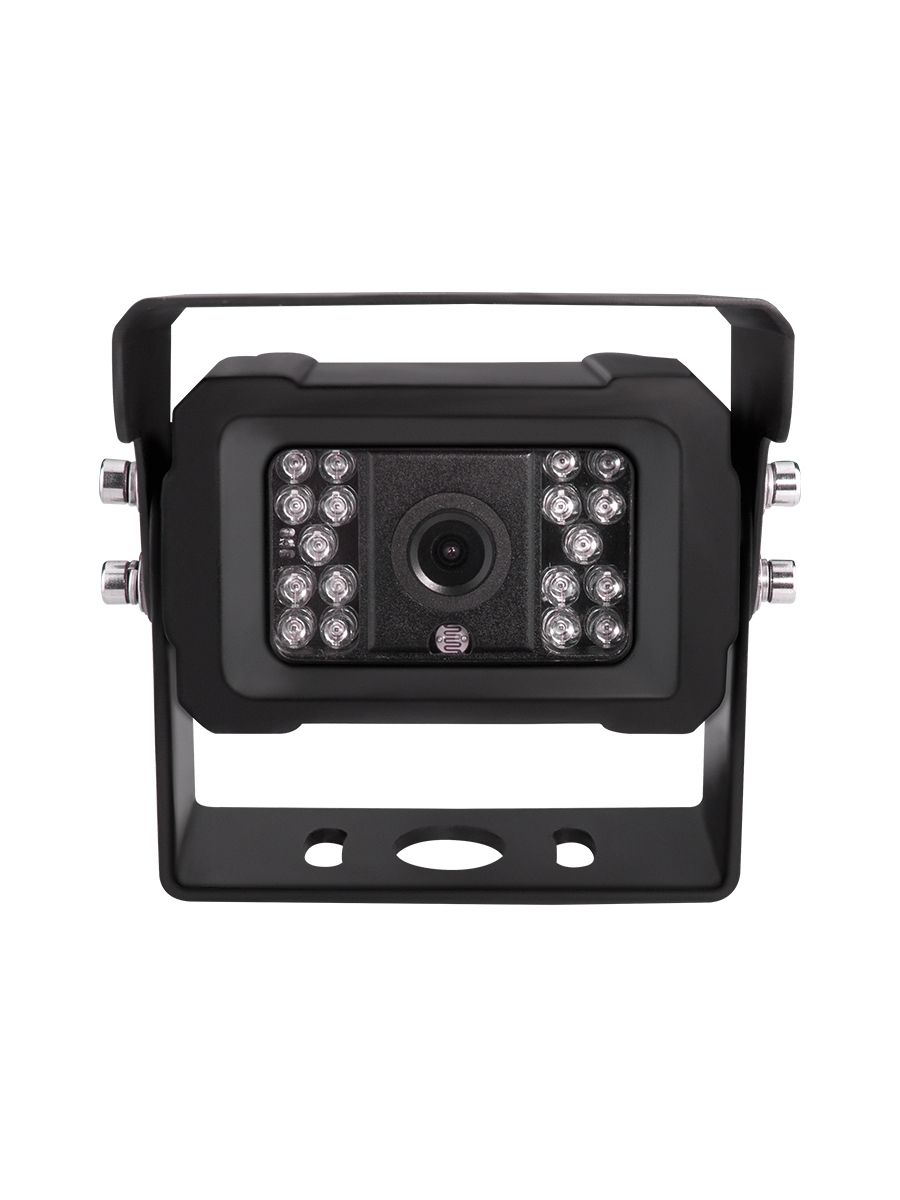

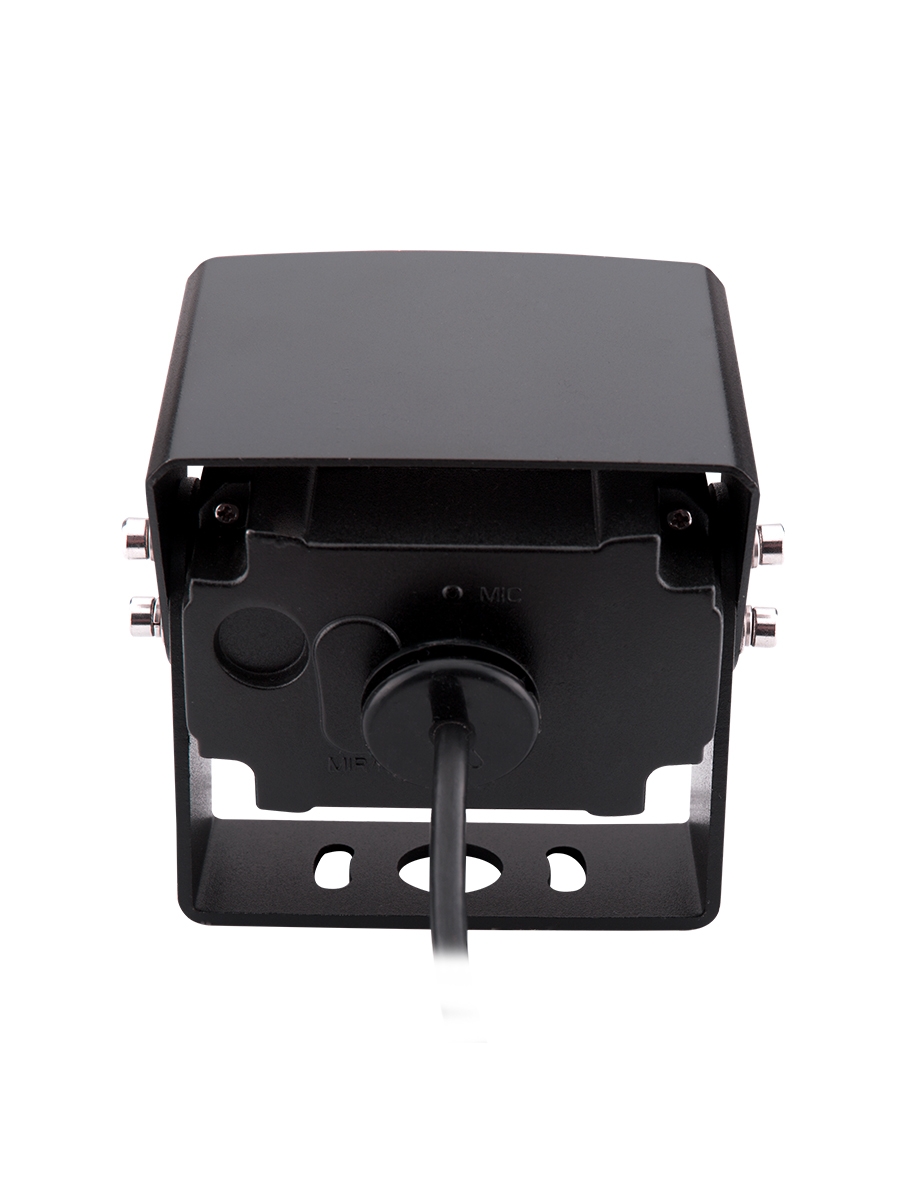

High quality high performance HD full HD Backup Camera Night
Vision Reverse Camera,
1/2.8" SONY 2.0
Mega-pixel image sensor , RC6003S Truck backup camera, perfect for
truck safety
Key Features:
○ High performance 1/2.8" SONY 2 Mega-pixel image
sensor
○ ICR switching, day night vision,
○ Support mirror switch
○ Good design to be fixed on the rear of the vehicle
○ IP68 Rated Waterproof
Specifications:
Model | RC6003S |
Image Sensor | 1/2.8" Sony |
TV System | NTSC/PAL |
Effective Pixels | 1920(H)ⅹ 1080(V) |
Sensing Area | 2.8μm(H)ⅹ 2.8μm(V) |
Sync. System | Internal |
Resolution | 1920x1080 , full HD 1080p |
Effective Pixels | 2.0 MP |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 18PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | Automatic |
Signal to noise ratio | Better than 48dB |
White balance | Automatic |
Gamma Consumption | 0.45 |
Electronic Shutter | Automatic |
Backlight Compensation | Automatic |
Power Supply | DC 12V |
Lens | 2.8mm |
Lens Angle | 122° |
Current | 70±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Dimensions |
Inner
Box:104*85*80mm Outbox/Carton: 420*310*340mm ,50PCS/CTN |
Weight Approx. | G.W.: 342g, N.W.: 306g |
